IC + BVA Butterfly Valve for Air
Part #KIBA Assembly
$1292.71 / EA

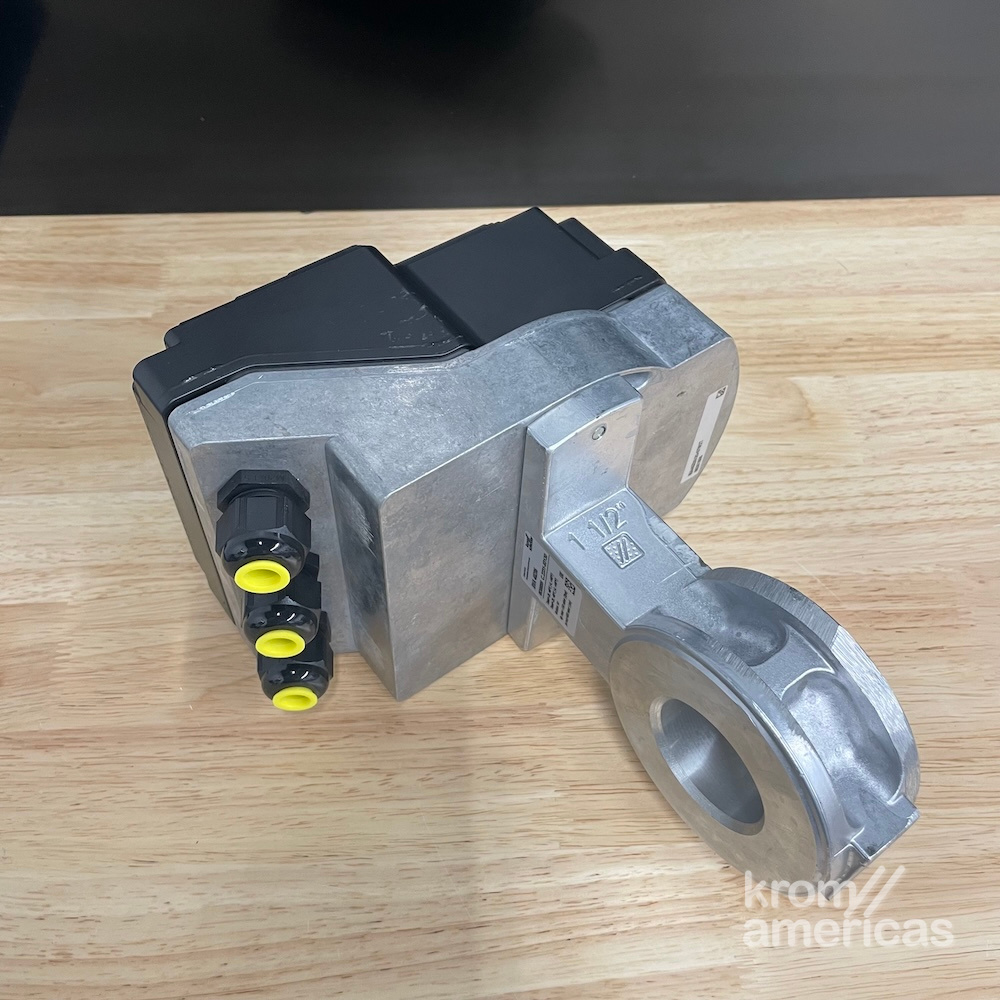

The KIBA is composed of an IC 20 or IC 40 actuator and BVA butterfly valve for air.
The BVA butterfly valve is designed to adjust volumes of cold and hot air. It is designed for control ratios up to 10:1. In combination with the IC actuator, it is suitable for regulating flow rates for modulating-controlled or stage-controlled combustion processes.
Use the selection tool on the right to pick the IC and BVA. For a detailed breakdown of each component, see the Type Code below.
For a gas butterfly valve option, refer to our KIBG Assembly.
-
Actuator Certifications
- UL - IC 40 only
- cUL - IC 40 only
- CSA
- CE
- EAC
Ratings
- Ambient temperature: 5°F to 140°F (-20°C to 60°C), no condensation permitted
- Enclosure:
- IC 40: NEMA 3
- IC 20: IP 64
-
Actuator IC 20 Running Time -07 07s /90° -15 15s /90° -30 30s /90° -60 60s /90° Main Voltage Q 120 V AC, 50/60 Hz W 230 V AC, 50/60 Hz Torque 2 2 Nm (17.7 lb-in) 3 3 Nm (26.5 lb-in) Control T Three-point step E Continuous Feedback Potentiometer R10 1000 Ohm
Actuator IC 40 Closing Function S Emergency closing function Main Voltage A 120-230 V AC, 50/60 Hz Torque 2 2 Nm (17.7 lb-in) 3 3 Nm (26.5 lb-in) Control D Digital inputs A 4 – 20 mA analogue input and digital inputs Feedback Potentiometer R10 1000 Ohm
BVA Butterfly valve for air Type A Air Nominal diameter 40-150 Size Reduced to /25-125 Size Pipe connection Z For fitting between two DIN flanges Inlet pressure 05 pu max. 500 mbar (200 "WC)
