- Enclosed: Yes (TGI)
- High Voltage: 7.5 kV
- Output Current: 20 mA at 50 Hz
- Duty Cycle: 33%
- Main Voltage: 115 V AC (R)
Ignition transformer, enclosed.
The TGI is designed for high-voltage spark ignition of gas burners and gas-ignited or directly ignited oil burners. The ignition transformers can also be used on burners with a single-electrode operation; the ignition current and ionization current flow over a common electrode.

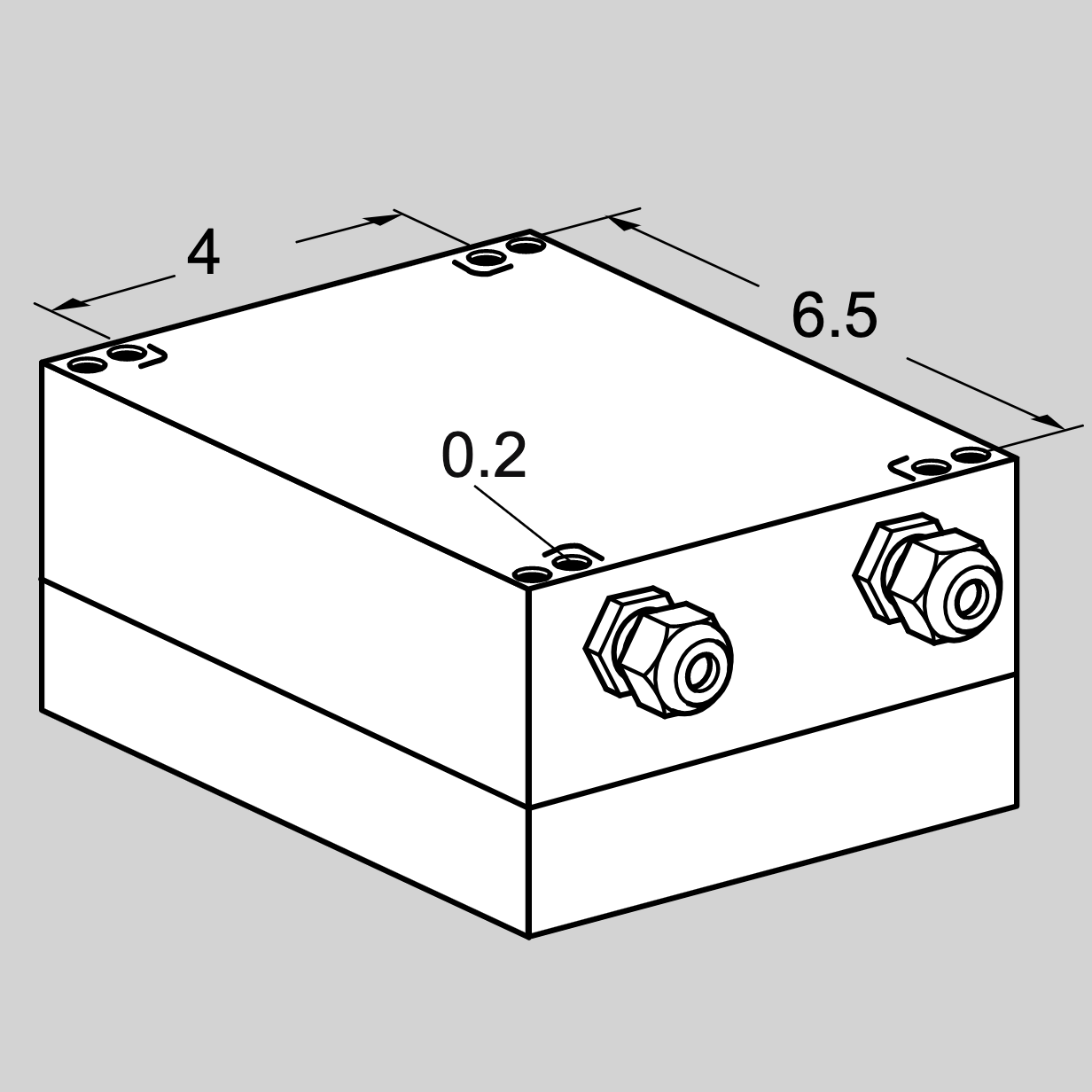

The TGI in its die-cast aluminum housing meets the requirements for enclosure IP 54. The housing has two A/F 27 cable glands with double seal inserts for two cables up to 7 mm in diameter. A seal insert for 10 to 14 mm is enclosed and can be used in the A/F 27 cable gland. It is suitable for on-site mounting near the burner. It is supplied with voltage via the IFD 258.
